Manufacturer of column lifters for wheelhouse

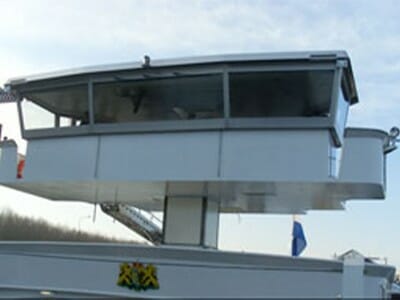

Photo Hub shaft wheellifter

Hub shaft helmshouse lifter from BÜTER: Cleverly designed for high cost efficiency

Lifting shaft wheelhouse lifters are used to lift the ship’s wheelhouse or lower it for bridge passages. A lifting shaft consists of interlocking pipes that are moved by means of a hydraulic cylinder. Depending on the available space between the hull and the ship’s deck, larger or smaller lifting heights can be realized.

Büter has designed and patented a round lifting shaft. This unique round design has several advantages over the usual angular shape: greater stiffness with low dead weight, shorter production lead times, fewer components, optimal shape for effective corrosion protection.

Applications

The column lifters for wheelhouse are used in inland and coastal shipping. Since the lifting shaft protrudes into the hull, it is preferably installed on ships designed for the transport of containers.

Properties

  • Round shape with high stiffness with low dead weight
  • Construction with few components, thus cost-effective
  • Low-maintenance components
  • Robust and durable construction
  • Hydraulic cylinders from our own production
  • Electronic control with customer-specific programming

Your benefits and benefits

  • Long service life: Durable construction, designed exclusively with high-quality components.
  • Low maintenance costs thanks to low-maintenance components.
  • Longevity: Robust construction, insensitive to external influences.
  • Lower investment costs thanks to design with fewer components.

Benefit from our many years of experience

Individually according to your wishes

We produce for you exactly according to your wishes. Whether standard products or special solutions, we have the right and tailor-made solution for all industrial sectors.

PRODUCTION & SERVICE FROM A SINGLE SOURCE

We manufacture almost every single part of our products directly at our site. This gives you above-average quality and our fast service for maintenance and repairs.

SPARE PARTS

Since we manufacture every assembly on site, we have many standard components in stock and can make them available to you quickly. We can produce special components at short notice.

SUSTAINABLE

With our site production, we reduce transport, emissions and traffic. We produce sustainably through optimized production processes and production processes.

FAST OFFER CREATION

We create a tailor-made offer for you at lightning speed. Thanks to our many years of experience and our wealth of knowledge, we quickly find the optimal solution for you.

~

24-MONTH WARRANTY

With us you receive not only a 12-month warranty, but directly a full 24 month warranty. You don't take any risks and you don't have any worries for the next few years.

Examples of our column lifters for wheelhouse

Photo Lifting shaft wheelhouse lifterextended

23.01001

Length: 1075 mm
Width: 1075 mm
Payload: 6000 Kg
Useful stroke: 7000 mm

Request now

Photo Lifting shaft wheelhouse jacks retracted

23.01014

Length: 1075 mm
Width: 1075 mm
Payload: 8000 Kg
Useful stroke: 4000 mm

Request now

Photo Lifting shaft wheelhouse lifterextended

23.01027

Length: 1375 mm
Width: 1375 mm
Payload: 12000 Kg
Useful stroke: 8900 mm

Request now

Photo Lifting shaft wheellifter in white

23.01051

Length: 1375 mm
Width: 1375 mm
Payload: 12000 Kg
Useful stroke: 8800 mm

Request now

Photo Hub shaft wheellifter

23.01071

Length: 1275 mm
Width: 1275 mm
Payload: 9000 Kg
Useful stroke: 2500 mm

Request now

Column lifters for wheelhouse for your company

Were we able to arouse your interest in a column lifter for wheelhouse?
