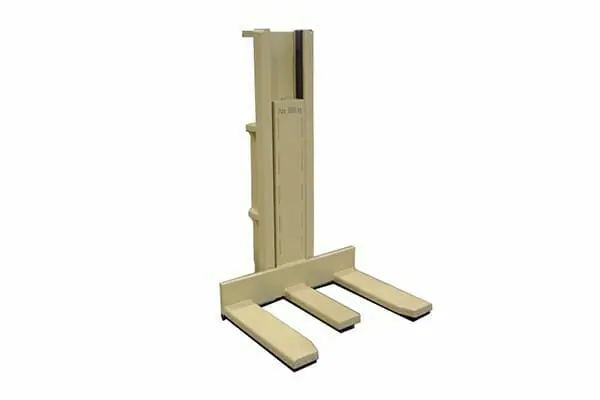

Vertical conveyors are extremely space-saving constructions because they lift the loads with a lifting mast instead of a lifting shear. As a result, they enable large conveying heights with low platform dimensions and low height.

The platform of the vertical conveyor offers a low drive-up height, which is why only a small ramp or a flat pit is necessary to load the lifter when the platform is closed.

Vertical conveyors are very versatile, which is why we often design them according to the individual wishes of the customer.

Applications

Vertical conveyors / column lifters are used in all industries in which loads are moved or lifted: in logistics, manufacturing, assembly halls, garages, etc. They are particularly popular as low-cost freight elevators.

Properties

  • Large conveying heights, despite small footprint
  • Extremely flat construction thanks to our special construction
  • Hydraulically driven standing cylinder
  • High-quality hydraulic cylinders from our own production
  • Rolling solid rollers
  • Electronic control system, individually programmed according to customer requirements

Your benefits and benefits

  • Cost-effective design: Thanks to the flat construction, no pit is required, so loading is even possible with hand-held fork lift trucks.
  • Perfectly customizable: We can tailor our column lifters to your needs and integrate them into your systems.
  • Efficient use of space: Compact design with maximum lifting capacity, thus saving space in the hall or the system.
  • Less repair and maintenance costs: Our column lifters are very robust and reliable, the maintenance effort is low.

Benefit from our many years of experience

Individually according to your wishes

We produce for you exactly according to your wishes. Whether standard products or special solutions, we have the right and tailor-made solution for all industrial sectors.

PRODUCTION & SERVICE FROM A SINGLE SOURCE

We manufacture almost every single part of our products directly at our site. This gives you above-average quality and our fast service for maintenance and repairs.

SPARE PARTS

Since we manufacture every assembly on site, we have many standard components in stock and can make them available to you quickly. We can produce special components at short notice.

SUSTAINABLE

With our site production, we reduce transport, emissions and traffic. We produce sustainably through optimized production processes and production processes.

FAST OFFER CREATION

We create a tailor-made offer for you at lightning speed. Thanks to our many years of experience and our wealth of knowledge, we quickly find the optimal solution for you.

~

24-MONTH WARRANTY

With us you receive not only a 12-month warranty, but directly a full 24 month warranty. You don't take any risks and you don't have any worries for the next few years.

Examples of our vertical conveyors

15.04114

Length: 2500 mm
Width: 1950 mm
Payload: 2500 Kg
Useful stroke: 8600 mm

Request now

15.04114

Length: 2500 mm
Width: 1950 mm
Payload: 2500 Kg
Useful stroke: 8600 mm

Request now

24.00019

Length: 1200 mm
Width: 1100 mm
Payload: 1500 Kg
Useful stroke: 1900 mm

Request now

24.00086

Length: 6000 mm
Width: 1200 mm
Payload: 7000 Kg
Useful stroke: 1900 mm

Request now

24.00196

Length: 1450 mm
Width: 1100 mm
Payload: 1000 Kg
Useful stroke: 1800 mm

Request now

24.00234

Length: 1250 mm
Width: 1050 mm
Payload: 900 Kg
Useful stroke: 1250 mm

Request now

24.00234

Length: 1250 mm
Width: 1050 mm
Payload: 900 Kg
Useful stroke: 1250 mm

Request now

24.00282

Length: 200 mm
Width: 100 mm
Payload: 2000 Kg
Useful stroke: 1900 mm

Request now

24.00301

Length: 900 mm
Width: 270 mm
Payload: 300 Kg
Useful stroke: 1200 mm

Request now

24.00301

Length: 900 mm
Width: 270 mm
Payload: 300 Kg
Useful stroke: 1200 mm

Request now

24.00301

Length: 900 mm
Width: 270 mm
Payload: 300 Kg
Useful stroke: 1200 mm

Request now

24.13043

Length: 1250 mm
Width: 1068 mm
Payload: 1000 Kg
Useful stroke: 1000 mm

Request now

17.01103

Length: 950 mm
Width: 650 mm
Payload: 1000 Kg
Useful stroke: 920 mm

Request now

24.01030

Length: 1070 mm
Width: 815 mm
Payload: 1000 Kg
Useful stroke: 700 mm

Request now

24.13041

Length: 2118 mm
Width: 1050 mm
Payload: 2000 Kg
Useful stroke: 2000 mm

Request now

24.00251

Length: 0 mm
Width: 0 mm
Payload: 4000 Kg
Useful stroke: 1000 mm

Request now

Hydrnic vertical conveyor for your company

Were we able to arouse your interest in a Hydrual vertical conveyor?
