Flat lifting table

Figure Flat stroke table

Practical, flexible, safe

Flat lifting tables have an extremely low height. So low that a short wedge is sufficient for driving and the lifting table can even be loaded with a normal hand-held forklift truck.

You can flexibly adapt our flat stroke tables to your systems and equip them with various attachments such as rotary platforms, prism superstructures, tilting platforms or automatic unwinding fuses.

Thanks to the well thought-out and robust construction, these flat-stroke tables are durable, low-maintenance and very stable.

Standard product with short delivery time

We also offer flat lifting tables in standard dimensions. This allows you to draw on a range of standard flat-stroke tables with short delivery times.

To our standard products

Applications

The flat-lift tables are used wherever processes are to be made safer or workplaces to be made more ergonomic without having to carry out extensive structural measures (e.g. pits). Industrial companies use our flat lifting tables for loading or unloading machining machines or in the shipping department.

Increasingly, production companies nowadays have to adapt and optimize their material flows in an agile manner. In addition, our flat lifting tables are used, because they can be installed and converted with little effort.

Properties

  • Extremely low construction
  • Can be equipped individually with various superstructures
  • Electronic control system, individually programmed according to customer requirements
  • High stability thanks to a well-thought-out, robust design
  • High-quality hydraulic cylinders from our own production
  • Hydraulically driven scissor mechanism
  • Sliding solid rollers with low-maintenance plain bearings

Your benefits and benefits

  • Efficient use of space: Thanks to the compact design with maximum lifting capacity, our flat stroke tables can be set up in a space-saving manner.
  • No pits and expensive ramps necessary: The flat design of a closed platform eliminates the need for pits; a short, inexpensive ramp is sufficient.
  • Less repair and maintenance costs: The flat-stroke table is almost unbreakable. The components used are all low-maintenance, which reduces maintenance costs.
  • High safety standards: Our flat lifting tables are also designed for maximum job safety.

Benefit from our many years of experience

Individually according to your wishes

We produce for you exactly according to your wishes. Whether standard products or special solutions, we have the right and tailor-made solution for all industrial sectors.

PRODUCTION & SERVICE FROM A SINGLE SOURCE

We manufacture almost every single part of our products directly at our site. This gives you above-average quality and our fast service for maintenance and repairs.

SPARE PARTS

Since we manufacture every assembly on site, we have many standard components in stock and can make them available to you quickly. We can produce special components at short notice.

SUSTAINABLE

With our site production, we reduce transport, emissions and traffic. We produce sustainably through optimized production processes and production processes.

FAST OFFER CREATION

We create a tailor-made offer for you at lightning speed. Thanks to our many years of experience and our wealth of knowledge, we quickly find the optimal solution for you.

~

24-MONTH WARRANTY

With us you receive not only a 12-month warranty, but directly a full 24 month warranty. You don't take any risks and you don't have any worries for the next few years.

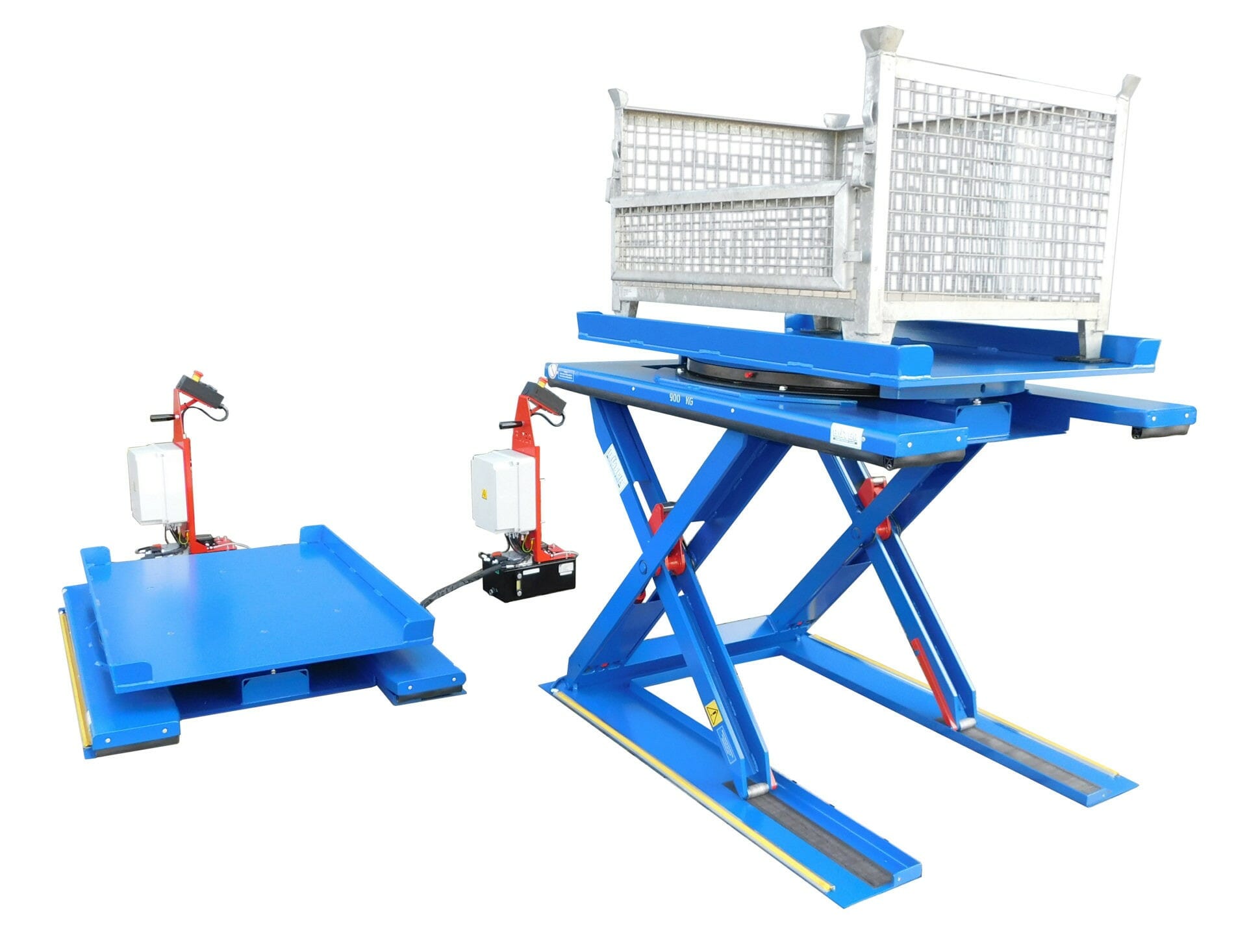

Examples of our hydraulic flat lifting tables

Figure Flat stroke table in blue

14.01300

Length: 1500 mm
Width: 1000 mm
Payload: 100 Kg
Useful stroke: 1600 mm

Request now

Figure Flat lifting table extended

14.01300

Length: 1500 mm
Width: 1000 mm
Payload: 100 Kg
Useful stroke: 1600 mm

Request now

Figure Flat stroke table in grey

14.04949

Length: 1600 mm
Width: 1700 mm
Payload: 1000 Kg
Useful stroke: 1600 mm

Request now

Figure Flat lifting table with trolley

14.05205

Length: 1500 mm
Width: 840 mm
Payload: 100 Kg
Useful stroke: 910 mm

Request now

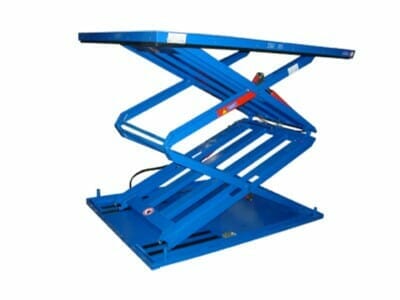

Figure Flat stroke tables in blue

14.05448

Length: 1400 mm
Width: 1000 mm
Payload: 900 Kg
Useful stroke: 900 mm

Request now

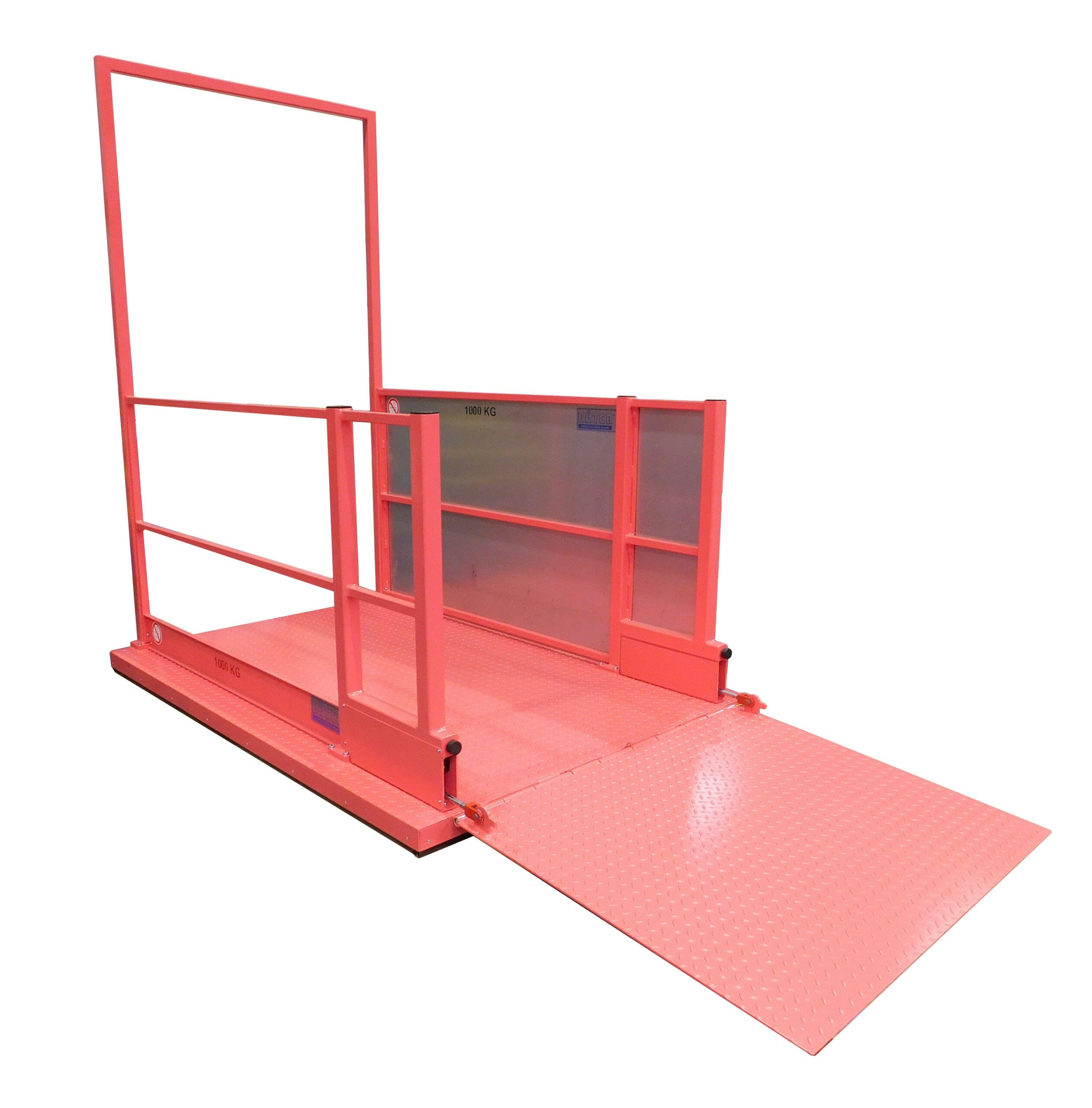

Figure Flat stroke table in red

14.05687

Length: 2250 mm
Width: 1540 mm
Payload: 1000 Kg
Useful stroke: 1330 mm

Request now

Figure Flat stroke table for people

14.05687

Length: 2250 mm
Width: 1540 mm
Payload: 1000 Kg
Useful stroke: 1330 mm

Request now

Figure Flat stroke table

14.13193

Length: 1800 mm
Width: 850 mm
Payload: 2000 Kg
Useful stroke: 900 mm

Request now

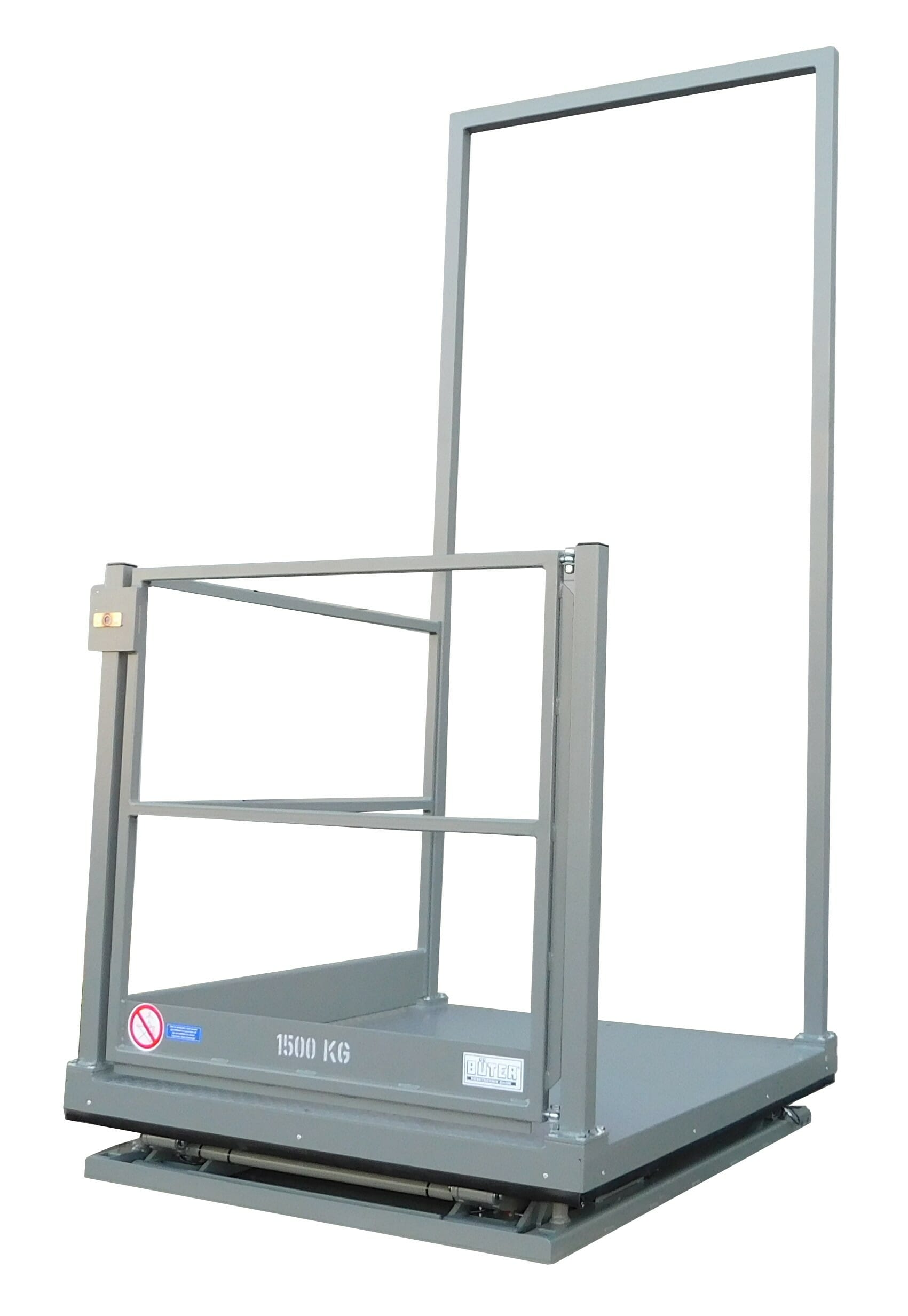

Figure Flat stroke table in grey

14.13820

Length: 1410 mm
Width: 1250 mm
Payload: 1500 Kg
Useful stroke: 1545 mm

Request now

Figure Flat lifting table in grey retracted

14.13820

Length: 1410 mm
Width: 1250 mm
Payload: 1500 Kg
Useful stroke: 1545 mm

Request now

Figure Flat stroke table in dark grey

14.05690

Length: 3300 mm
Width: 950 mm
Payload: 7000 Kg
Useful stroke: 1000 mm

Request now

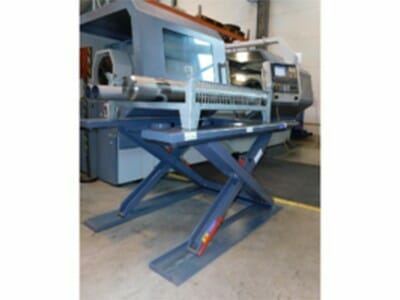

Figure Flat lifting table in use

14.15355

Length: 1400 mm
Width: 1000 mm
Payload: 1200 Kg
Useful stroke: 920 mm

Request now

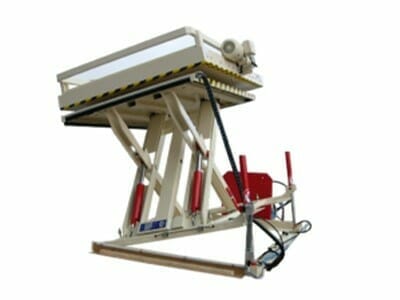

Figure Flat stroke table can be tilted

14.04639

Length: 1500 mm
Width: 1000 mm
Payload: 800 Kg
Useful stroke: 920 mm

Request now

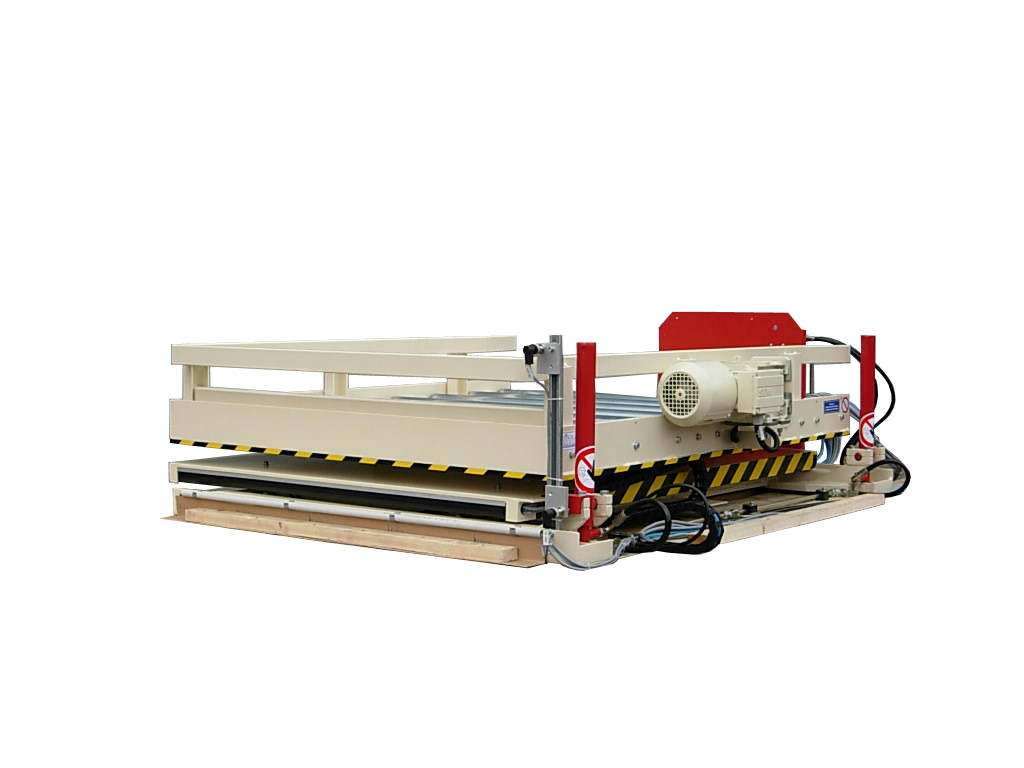

Figure Flat lifting table retracted

14.04639

Length: 1500 mm
Width: 1000 mm
Payload: 800 Kg
Useful stroke: 920 mm

Request now

Figure Flat lifting table in use

HF 12-10

Length: 1400 mm
Width: 1000 mm
Payload: 1200 Kg
Useful stroke: 920 mm

Request now

Hydraulic flat lifting tables for your company

Were we able to arouse your interest in a hydraulic flat lifting table?
