Coil transport vehicles for aluminium

Coil transport vehicle for aluminium

Coil transport vehicles for the steel industry

Coil transport vehicles find a wide range of applications in the steel and aluminium industries. As a rule, the coil is handed over via the RBG shelf control unit, which stores and outs the coils.

We offer not only rail-guided vehicles, but also freely movable models with all-wheel drive and all-wheel steering. These are equipped with various steering programs, which allows for extremely flexible use. Our coil transport vehicles are optionally available as lifting vehicles with integrated lifting equipment.

Product

The OmniDrive drive concept enables precise positioning of the vehicles in all directions. In addition to front and rear-wheel steering, cross-driving, inclined or circular driving are also possible. The clever thing is that no steering movements are required at all; the steering is carried out only by controlling the direction of rotation and the speed of the wheels. This makes every possible vehicle movement possible in the tightest of spaces.

Various versions are available for the energy supply:

  • Wired systems
  • Battery drives with stationary charging stations
  • Inductive power transmission (wireless and non-contact)

In this way, the coil transport vehicles can be used very flexibly and – in the case of battery drive or inductive transmission – are easily accessible from all sides, without disturbing energy chains or the like.

Applications

Coil transport vehicles are used in the steel and aluminium industry, but also in the paper and plastics industry.

Properties

  • Robust and durable construction
  • Sliding solid rollers; Low-maintenance plain bearings
  • Hydraulically driven scissor mechanism with hydraulic cylinders from our own production
  • Electronic control with customer-specific programming

Your benefits and benefits

Smooth operation: Perfect integration into your processes and low susceptibility to repair ensure trouble-free processes.
Long service life: Durable construction, designed exclusively with high-quality components.
Low maintenance costs thanks to low-maintenance components.
Longevity: Robust construction, insensitive to external influences.

Benefit from our many years of experience

Individually according to your wishes

We produce for you exactly according to your wishes. Whether standard products or special solutions, we have the right and tailor-made solution for all industrial sectors.

PRODUCTION & SERVICE FROM A SINGLE SOURCE

We manufacture almost every single part of our products directly at our site. This gives you above-average quality and our fast service for maintenance and repairs.

SPARE PARTS

Since we manufacture every assembly on site, we have many standard components in stock and can make them available to you quickly. We can produce special components at short notice.

SUSTAINABLE

With our site production, we reduce transport, emissions and traffic. We produce sustainably through optimized production processes and production processes.

FAST OFFER CREATION

We create a tailor-made offer for you at lightning speed. Thanks to our many years of experience and our wealth of knowledge, we quickly find the optimal solution for you.

~

24-MONTH WARRANTY

With us you receive not only a 12-month warranty, but directly a full 24 month warranty. You don't take any risks and you don't have any worries for the next few years.

Examples of our coil transport vehicles

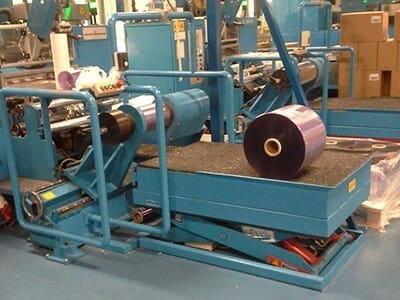

Coil transport vehicle for aluminium

11.02130

Length: 1350 mm
Width: 800 mm
Payload: 800 Kg
Useful stroke: 805 mm

Request now

Coil transport vehicle for aluminium

11.02130

Length: 1350 mm
Width: 800 mm
Payload: 800 Kg
Useful stroke: 805 mm

Request now

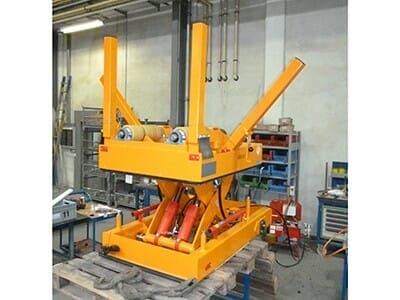

Coil transport vehicle for aluminium

11.24172

Length: 1200 mm
Width: 1000 mm
Payload: 4000 Kg
Useful stroke: 500 mm

Request now

Coil transport vehicle for aluminium

11.24825

Length: 1500 mm
Width: 750 mm
Payload: 5000 Kg
Useful stroke: 820 mm

Request now

Coil transport vehicle for aluminium

11.24951

Length: 1500 mm
Width: 800 mm
Payload: 6000 Kg
Useful stroke: 600 mm

Request now

Coil transport vehicle for aluminium

11.25379

Length: 1500 mm
Width: 1200 mm
Payload: 8400 Kg
Useful stroke: 650 mm

Request now

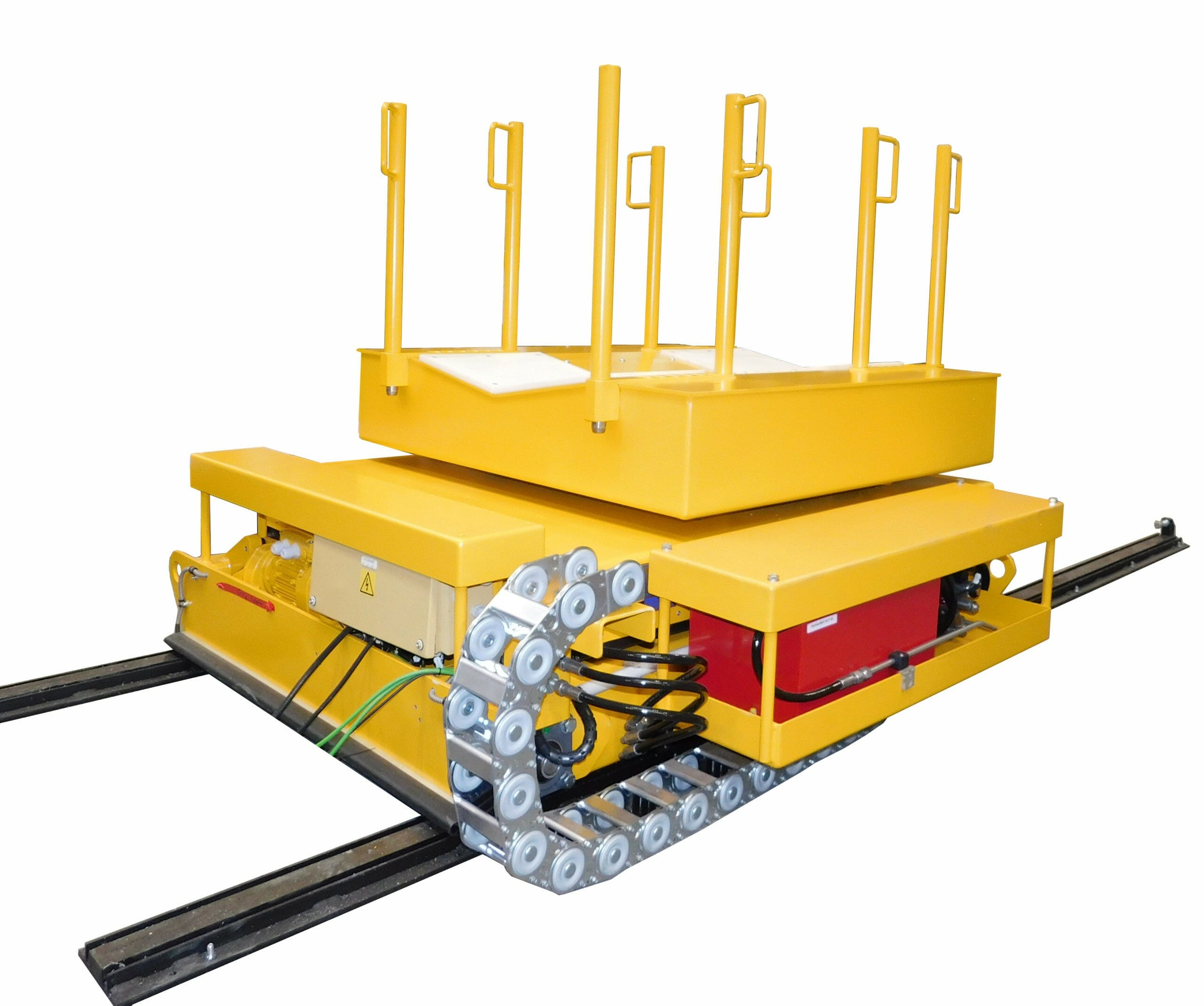

Coil transport vehicle for aluminium

11.25379

Length: 1500 mm
Width: 1200 mm
Payload: 8400 Kg
Useful stroke: 650 mm

Request now

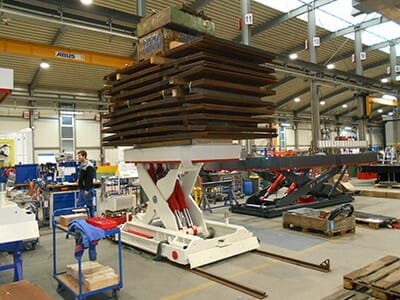

Coil transport vehicle for aluminium

11.26172

Length: 2015 mm
Width: 1100 mm
Payload: 25000 Kg
Useful stroke: 1100 mm

Request now

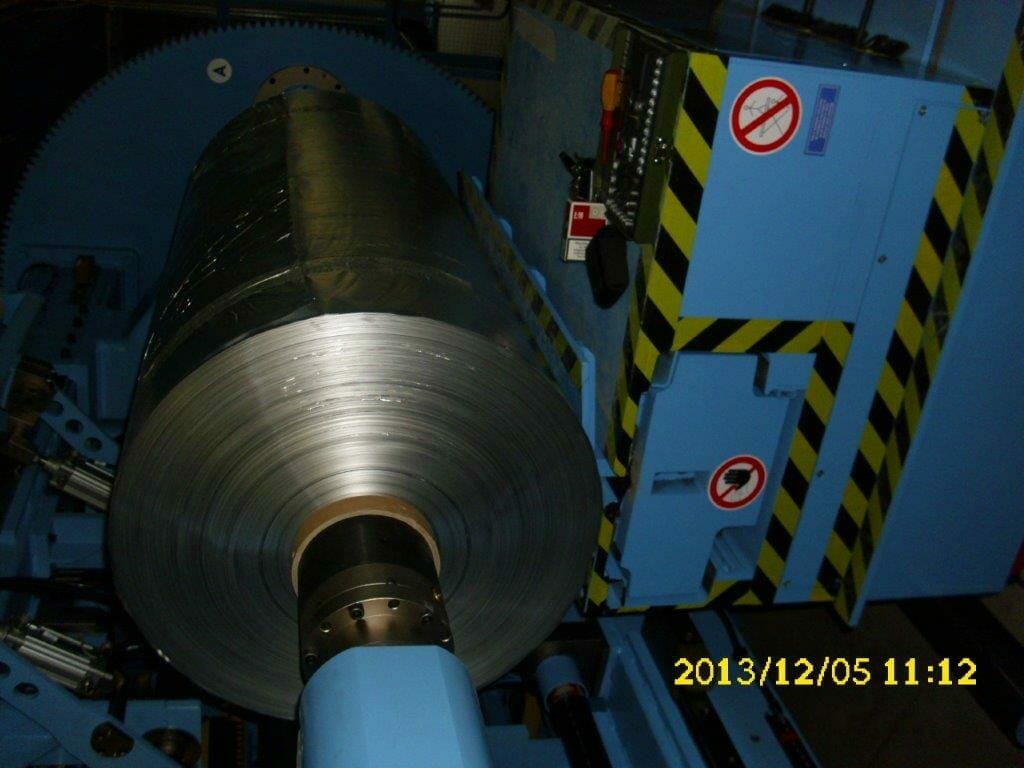

Coil transport vehicle for aluminium

11.23826

Length: 2850 mm
Width: 1000 mm
Payload: 2300 Kg
Useful stroke: 1550 mm

Request now

Coil transport vehicle for aluminium

11.23826

Length: 2850 mm
Width: 1000 mm
Payload: 2300 Kg
Useful stroke: 1550 mm

Request now

Coil transport vehicle for aluminium

11.23826

Length: 2850 mm
Width: 1000 mm
Payload: 2300 Kg
Useful stroke: 1550 mm

Request now

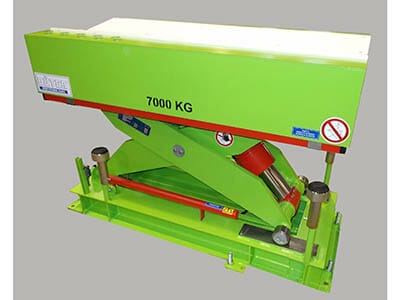

Coil transport vehicle for aluminium

11.25516

Length: 1500 mm
Width: 800 mm
Payload: 7000 Kg
Useful stroke: 750 mm

Request now

Coil transport vehicle for aluminium

11.25516

Length: 1500 mm
Width: 800 mm
Payload: 7000 Kg
Useful stroke: 750 mm

Request now

Coil transport vehicles for your company

Were we able to arouse your interest in coil transport vehicles?
