Your individual side elevating work platforms

Our side work platforms provide comfortable and safe access to the side and roof area of the vehicles. They are available as freely movable or track-guided lifting work platforms.

The freely movable side work platforms can be equipped with a non-contact side guide, for example with induction loops, ribbons or coding strips along the track system.

The gap between the lifting platform and the vehicle contour is closed with a retractable telescopic platform.

Product

For work in the roof area, two parallel side work platforms should be used if possible, which create a closed, safe working area by means of swivelling safety railings.

If only a single side work platform is used, the working area on the roof can be secured by a retractable end railing; however, in this case, personal protective equipment (PPE) must also be used.

Our side work platforms are equipped with a safety key concept that is connected to your overhead line control system so that lifting the stage is only possible when the overhead line is switched off.

Applications

The side work platforms are used for the maintenance and maintenance of rail vehicles: for the maintenance and replacement of pantographs, air conditioners and similar components on the roof of the vehicle, for work on the sides of the vehicle, etc.

Properties

  • Drive and hoist drive electric with battery
  • Various non-contact guidance systems for the freely movable stages
  • Fast and safe to move
  • Easy to use
  • Lifting platform can be equipped with swivel crane
  • Telescopic platform with end-side defeat bar
  • Can be used for different vehicles
  • Very robust and durable construction

Your benefits and benefits

  • Long service life: Thanks to its robust design and durable components, wear is low.
  • Highest occupational safety: Sophisticated, detailed safety concepts according to the latest state of the art.
  • User-friendly: Easy-to-understand operating concept that ensures short training times and high acceptance among employees.
  • Individually customizable: Our side work platforms can be flexibly adapted to your requirements and can be used for different vehicles.

Benefit from our many years of experience

Individually according to your wishes

We produce for you exactly according to your wishes. Whether standard products or special solutions, we have the right and tailor-made solution for all industrial sectors.

PRODUCTION & SERVICE FROM A SINGLE SOURCE

We manufacture almost every single part of our products directly at our site. This gives you above-average quality and our fast service for maintenance and repairs.

SPARE PARTS

Since we manufacture every assembly on site, we have many standard components in stock and can make them available to you quickly. We can produce special components at short notice.

SUSTAINABLE

With our site production, we reduce transport, emissions and traffic. We produce sustainably through optimized production processes and production processes.

FAST OFFER CREATION

We create a tailor-made offer for you at lightning speed. Thanks to our many years of experience and our wealth of knowledge, we quickly find the optimal solution for you.

~

24-MONTH WARRANTY

With us you receive not only a 12-month warranty, but directly a full 24 month warranty. You don't take any risks and you don't have any worries for the next few years.

Examples of our side elevating work platforms

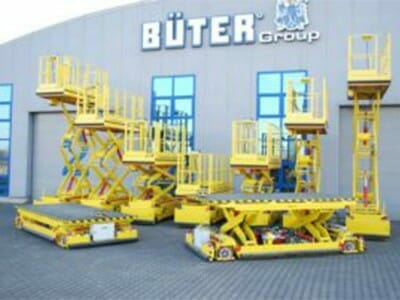

seitenarbeitsbuehnen1 1

Lifting work platforms in a wide range of designs

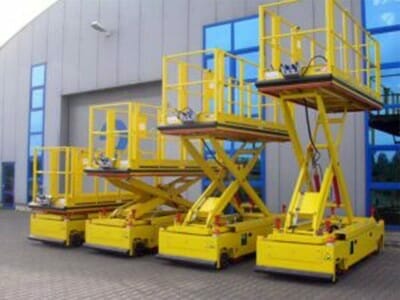

seitenarbeitsbuehnen2

Freely movable with all-wheel drive and steering

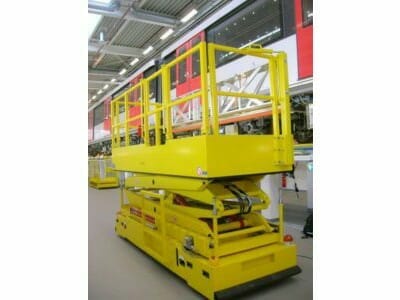

seitenarbeitsbuehnen3

Large lifting area via double scissors

seitenarbeitsbuehnen5

Detail battery drive and charging plug 230 volts

seitenarbeitsbuehnen6

Detail swivel railing

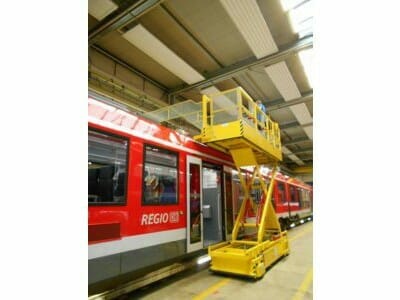

seitenarbeitsbuehnen4

Sliding platform for gap bridging

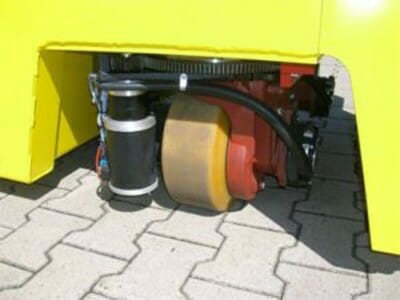

seitenarbeitsbuehnen8

Detail Driving and steering drive via brushless three-phase drives

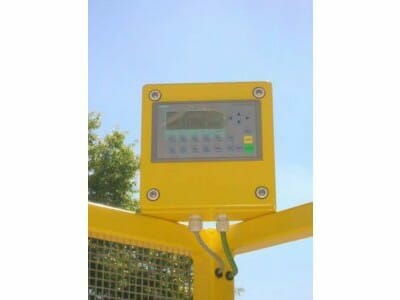

seitenarbeitsbuehnen7

Detail height display on lifting platform
